Introduction

Integration - Automated Certificate Management Environment (ACME) API

Slide Deck: Integration

Overview: The goal of ACME training is to learn how to issue and revoke TLS server certificates using the ACME protocol.

ACME is used to generate certificate(s) for Web Servers. In this lab we will issue a certificate for our server, and the second part of the lab will use ACME to revoke the certificate.

Slide Reference

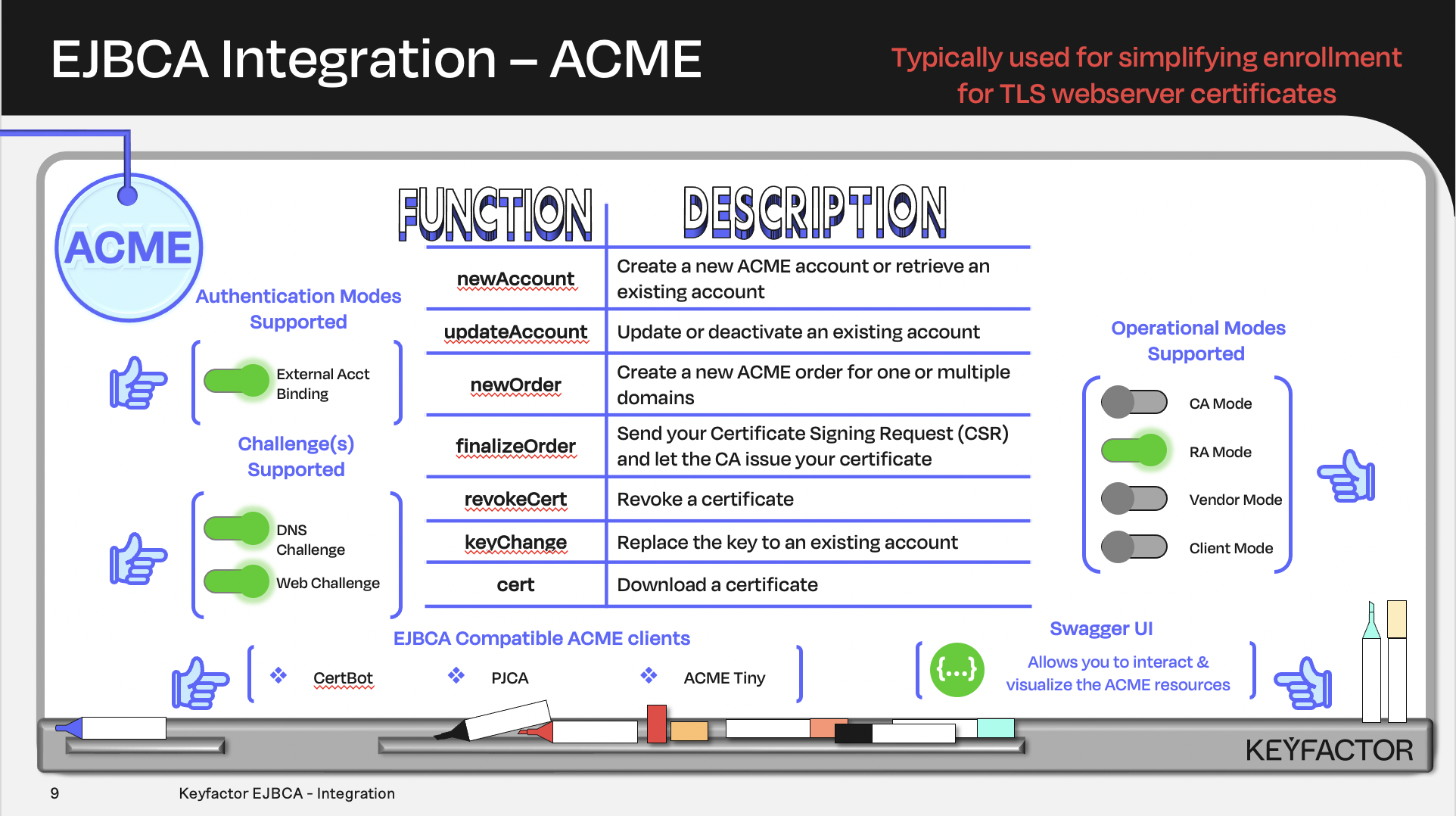

Certificate and CA operations available using Automated Certificate Management Environment (ACME)

Create the URL with the default URL resource + the protocol alias; the client will contact the URL

Reminder you can visit the Accessing Your Environment page for details on how to connect to your Admin Web portal

Create a Certificate Profile for ACME

  1. Click on CA Functions >> Certificate Profiles

  2. Click on Clone to clone the TLSServerCertificateProfile certificate profile

  3. Type in KF-ACME-RSA2k as the name of the certificate profile and click on Create from template

  4. Click on Edit to edit the KF-ACME-RSA2k certificate profile

  5. Select Sub CA in the list of Available CAs

  6. Click on Save

Create an End Entity Profile for ACME

  1. Click on RA Functions >> End Entity Profiles

  2. Fill in KF-ACME-RSA2k as the profile name and click on Add profile

  3. Select KF-ACME-RSA2k in the list of end entity profiles and click on Edit End Entity Profile

  4. In the Batch generation (clear text pwd storage) field, enable the Use check box

  5. Next to End Entity E-mail, click the Required checkbox

  6. In the Subject DN Attributes list, select O, Organization and click Add

  7. In the O, Organization field:

    1. Enter the text PrimeKey Solutions AB

    2. Select Required

    3. Deselect Modifiable

  8. In the Subject DN Attributes list, select C, Country (ISO 3166) and click Add

  9. In the C, Country (ISO 3166) field:

    1. Enter the text SE

    2. Select Required

    3. Deselect Modifiable

  10. In the Subject Alternative Name drop-down, select DNS Name and click on Add

    1. Enable Required

  11. Choose KF-ACME-RSA2k as Default Certificate Profile

  12. Select KF-ACME-RSA2k in the list of Available Certificate Profiles

  13. Choose Sub CA as Default CA

  14. Choose Sub CA in the list of Available CAs

  15. Choose User Generated in the list of Available Tokens

  16. Click on Save

Create an ACME Alias

  1. Click on System Configuration >> ACME Configuration

  2. Click on Add to add a new alias

  3. Enter rsa2k as the name of the alias

    1. Enable the DN radio button for the RA Name Generation Scheme

    2. Choose the end entity profile KF-ACME-RSA2k

    3. Disable the Validate DNSSEC checkbox, by unchecking the box

  4. Click on Save to close the ACME alias

  5. Click on Save under the Global ACME Configurations

Enable the ACME Protocol

  1. Click on System Configuration >> System Configuration

  2. Click on the Protocol Configuration tab

  3. Click on Enable for the ACME protocol

Certbot

We will use Certbot as an ACME client. This software has been loaded on your CLIENT instance already.

Issue a Certificate

Reminder you can visit the Accessing Your Environment page for details on how to connect to connect via SSH

  1. Open up the TERMINAL application and cd to sysadmin home directory.

CODE
cd ~

  1. Create a configuration file for OpenSSL, copy the information shown here into your acmecsr.conf file.

CODE
vim acmecsr.conf

acmecsr.conf

NONE
[ req ]
default_bits = 2048
distinguished_name = req_distinguished_name
req_extensions = req_ext
prompt = no

[ req_distinguished_name ]
countryName = SE
organizationName = PrimeKey Solutions AB
# The commonname is the name of the server you are requesting a certificate for
commonName = client.keyfactor.training

[ req_ext ]
subjectAltName = @alt_names

[alt_names]
# The DNS name is an additional name of the server you are requesting a certificate for
DNS.1 = client.keyfactor.training

  1. Save and close the file :wq!

  1. Create a CSR using OpenSSL

NONE
openssl req -new -config acmecsr.conf -newkey rsa:2048 -nodes -keyout localhost.key -out localhost.csr

  1. Issue a certificate using Certbot. This will create a new ACME account and start a webserver on port 80 to prove control over the domain. There may be some python warnings generated at this time, these can be ignored.

CODE
sudo certbot certonly --standalone --no-verify-ssl --csr localhost.csr --agree-tos --no-eff-email --email training@keyfactor.com \
--server https://ca.keyfactor.training/ejbca/acme/rsa2k/directory

NONE
 Explanation of parameters:

--standalone	- run a standalone webserver for authentication
--no-verify-ssl	- explicit trust the TLS connection to ca.primekey.training
--csr			- name of the csr file created above
--agree-tos     - Agree to the Terms of Service of the ACME server enrolling from
-no-eff-email   - Do not share your email with EFF
--email         - email address to contact
--server        - contact the CA located at: https://ca.keyfactor.training/ejbca/acme/directory

RESULTS

Successfully received certificate.
Certificate is saved at:            /home/sysadmin/0000_cert.pem
Intermediate CA chain is saved at:  /home/sysadmin/0000_chain.pem
Full certificate chain is saved at: /home/sysadmin/0001_chain.pem
This certificate expires on 2027-05-08.

NEXT STEPS:
- Certificates created using --csr will not be renewed automatically by Certbot. You will need to renew the certificate before it expires, by running th esame Certbot command again.

  1. Inspect the certificate

NONE
openssl x509 -in 0000_cert.pem -noout -text

You will see something similar returned after running the last command.

CODE
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            41:5c:79:87:76:d7:97:36:67:4a:23:c2:09:49:cd:83:cf:73:c7:91
    Signature Algorithm: sha256WithRSAEncryption
        Issuer: C=SE, O=PrimeKey Solutions AB, CN=Sub CA
        Validity
            Not Before: Sep 28 20:46:15 2025 GMT
            Not After : Sep 27 20:46:14 2027 GMT
        Subject: C=SE, O=PrimeKey Solutions AB, CN=client.keyfactor.training
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:a6:ba:2e:79:01:bb:25:96:86:a9:b3:18:a5:4d:
                    f5:00:a4:9f:87:73:30:1d:d6:f8:a3:f4:82:fd:6b:
                    bd:99:74:25:37:02:18:9f:30:72:5d:8f:a2:8f:d0:
                    c4:69:8f:5c:6b:b9:52:be:f2:38:e6:53:dc:15:fe:
                    ...

Revoke the Certificate

  1. Revoke the certificate as compromised, if prompted answer NO to delete the certificate.

NONE
sudo certbot revoke --no-verify-ssl --reason keycompromise --server https://ca.keyfactor.training/ejbca/acme/rsa2k/directory --cert-path 0000_cert.pem --no-delete-after-revoke

CODE
RESULTS:

There may be some python warnings generated at this time, these can be ignored.

Congratulations! You have successfully revoked the certificate that was located at /home/sysadmin/0000_cert.pem
