Introduction

Integration - Enrollment over Secure Transport (EST)

Slide Deck: Integration

Overview:

This lab demonstrates two different modes for creating a certificate using the EST protocol.

  1. The first mode creates a certificate for an entry that PRE-EXISTS in the database (a.k.a. Client Mode). First, a certificate profile and an end entity profile will be created for use with the EST protocol.

  2. Next, an entry will be added to the database. This will simulate pre-loaded entries for instance.

  3. An alias will be created for the EST protocol. The EST client will contact an endpoint (alias) and request a certificate be generated using the EST Client Mode. The RA Mode alias, will also be created in this section, and used at a later time during the lab.

  4. The final step is to ENABLE the EST protocol. A request to generate a certificate will be sent using OPENSSL for each mode.

  5. The section entitled "Enroll for a certificate using EST RA mode", will generate the entry and certificate at the same time. RA mode will ALSO demonstrate a KEY RENEWAL process whereby a certificate is RENEWED using an existing certificate to authenticate to EJBCA. At the end of that process, the entry will contain (2) certificates; the original and the renewal.

Slide Reference

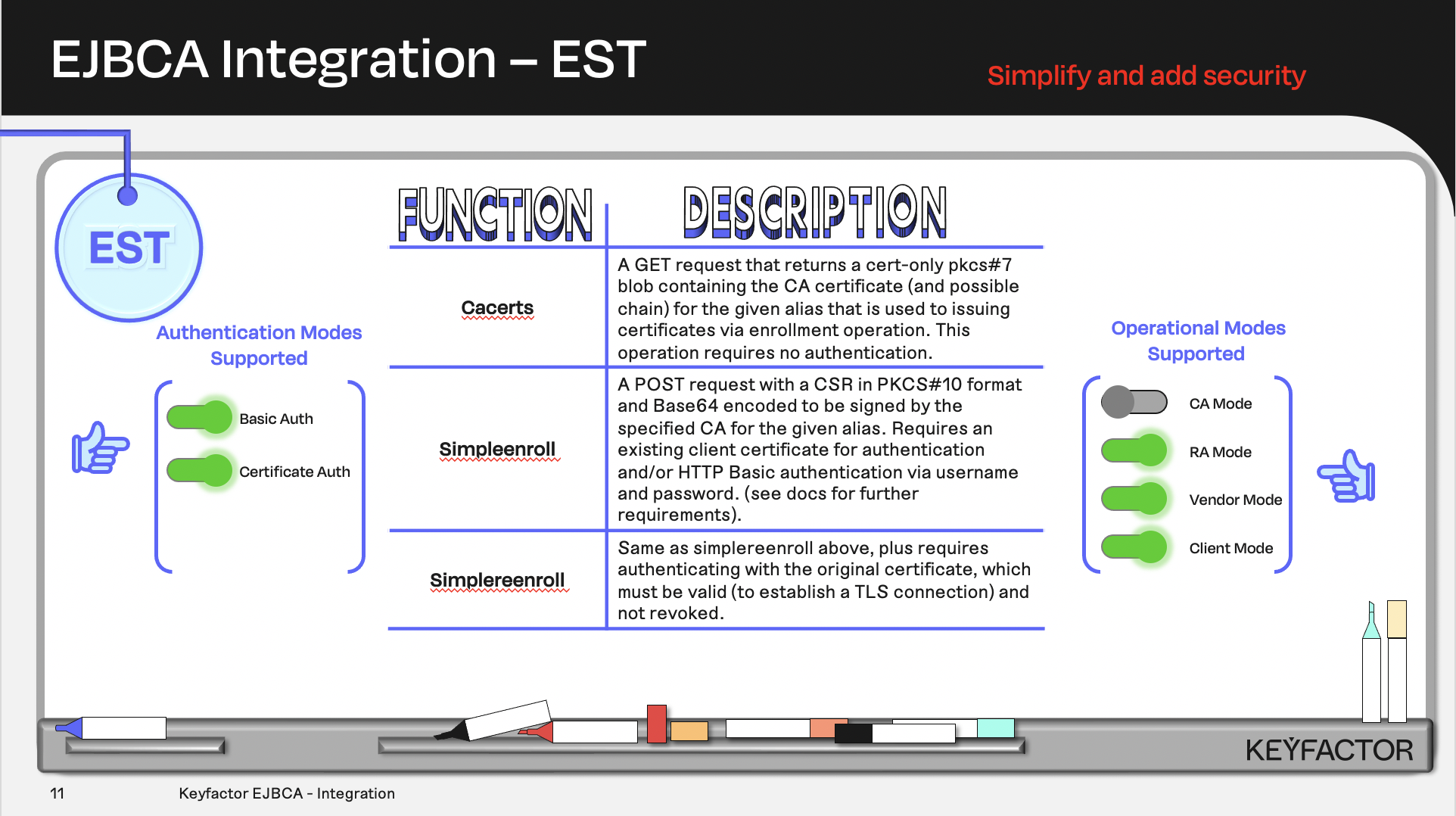

Certificate and CA operations available using Enrollment over Secure Transport (EST)

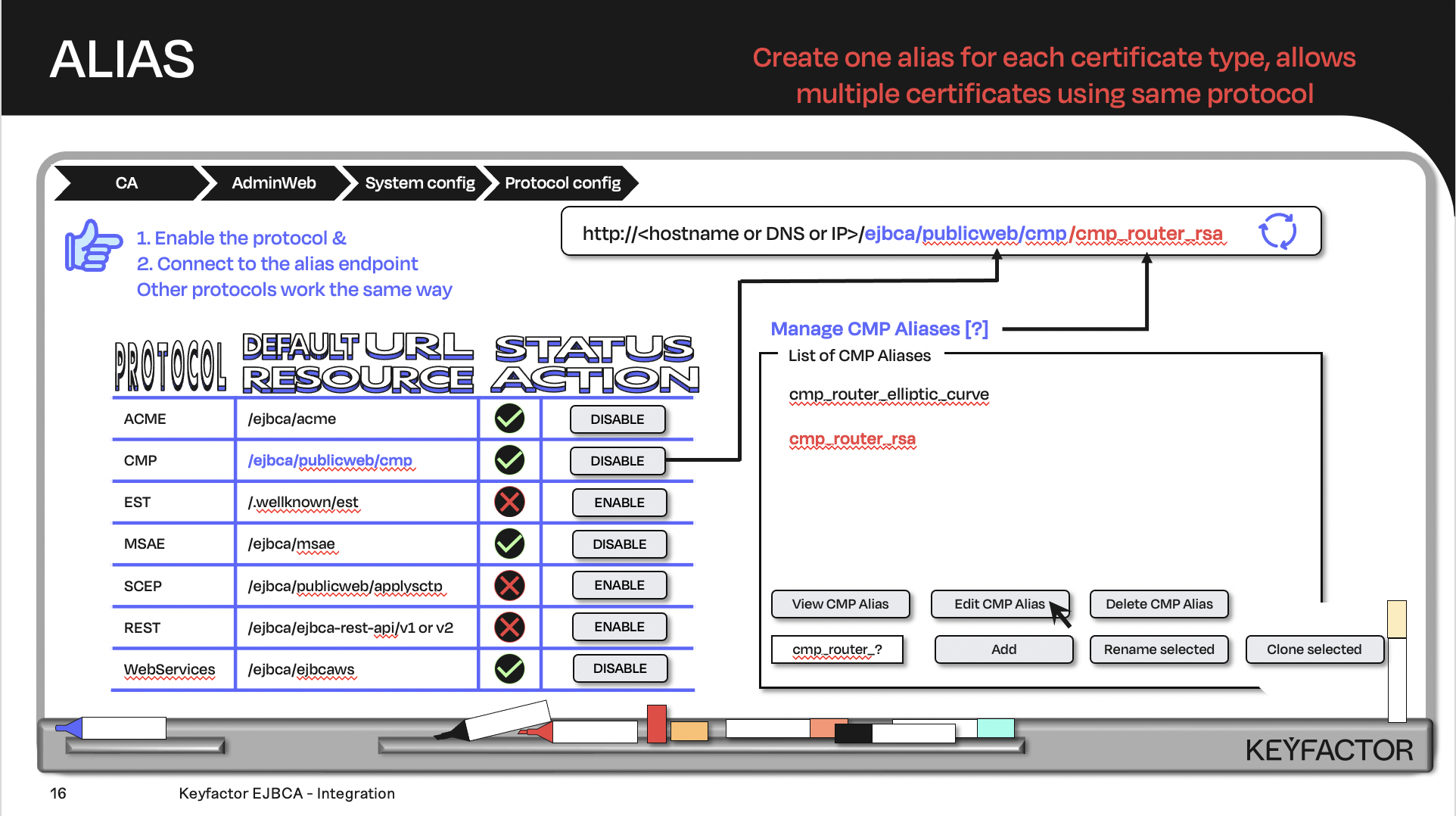

Create the URL with the default URL resource + the protocol alias; the client will contact the URL

Reminder you can visit the Accessing Your Environment page for details on how to connect to your Admin web portal

Create a Certificate Profile for EST

  1. Open a browser and access the Admin Web portal

  2. Click on CA Functions >> Certificate Profiles

  3. Click on Clone to clone the TLSClientCertificateProfile certificate profile

  4. Type in EST-RSA2k as the name of the certificate profile and click on Create from template

  5. Click on Edit to edit the EST-RSA2k certificate profile

  6. Uncheck the LDAP DN Order located in the Other data section

  7. Select Sub CA in the list of Available CAs

  8. Click on Save

Create an End Entity Profile for EST

  1. Open a browser and access the Admin Web portal

  2. Click on RA Functions >> End Entity Profiles

  3. Fill in EST in the Add End Entity profile field and click on Add profile

  4. Select EST in the list of end entity profiles and click on Edit End Entity Profile

  5. In the Subject DN Attributes list, select O, Organization and click Add

  6. In the O, Organization field:

    1. Enter the text PrimeKey Solutions AB

    2. Select Required

    3. Deselect Modifiable

  7. In the Subject DN Attributes list, select C, Country (ISO 3166) and click Add

  8. In the C, Country (ISO 3166) field:

    1. Enter the text SE

    2. Select Required

    3. Deselect Modifiable

  9. In the Subject Alternative Name drop-down, select DNS Name and click on Add

  10. Choose EST-RSA2k as Default Certificate Profile

  11. Select EST-RSA2k in the list of Available Certificate Profiles

  12. Choose Sub CA as Default CA

  13. Chose Sub CA in the list of Available CAs

  14. Choose User Generated in the list of Available Tokens

  15. Click on Save

Create EST End Entity for Client Mode

To create an end entity that will be enrolled using EST in Client mode:

  1. Open a browser and access the Admin Web portal

  2. Click RA Functions >> Add End Entity

  3. In the End Entity Profile list, select EST

  4. In the Username field, enter est-client.primekey.training

  5. In the Password field, enter foo123

  6. In the Confirm Password field, enter foo123

  7. In the CN, Common name field, enter est-client.primekey.training

  8. In the Certificate Profile list, select EST-RSA2k

  9. In the CA list, select Sub CA

  10. In the Token list, select User Generated

  11. Click Add

Create EST Aliases

CREATE EST Client Mode Alias

  1. Click on System Configuration >> EST Configuration

  2. Click on Add to add a new alias

  3. For the name field enter, enter client

The alias name is CaSe SEnsiTive - please use all lowercase

  1. Enable the radio button to select Client Mode for the EST Operational Mode

  2. Select CN from the drop down list for the Extract Username Component

  3. In the Authentication Module section, check the box for HttpBasicAuth

  4. In the CA Name section, select Sub CA from the drop down list

  5. Click on Save


CREATE EST RA Mode Alias

  1. Click on Add to add a new alias

  2. For the name field enter, enter estra

The alias name is CaSe SEnsiTive - please use all lowercase

  1. In the RA CA Name section, select Sub CA from the drop down list

  2. In the End Entity Profile section, select EST from the drop down list

  3. In the Certificate Profile section, select EST-RSA2k from the drop down list

  4. In the Require Client Certificate section, uncheck the Yes checkbox

  5. In the Client Username section, enter ejbca

  6. In the Client Password section, enter foo123

  7. Click on Save

Enable the EST Protocol

  1. Click on System Configuration >> System Configuration

  2. Click on the Protocol Configuration tab

  3. Click on Enable for the EST protocol

Reminder you can visit the Accessing Your Environment page for details on how to connect to connect via SSH

Generate EST Keystore

  1. To generate the EST client keystore and certificate locally on the CLIENT instance

  2. Open RAWeb from the EJBCA ribbon

  3. Click CA Certificates & CRLs

  4. Under the Certificate column, for the ManagementCA click PEM

    1. This will download the ManagementCA.pem file to /home/sysadmin/Downloads folder

  5. Open the TERMINAL application and move the ManagementCA.pem file to the sysadmin home directory

CODE
cd ~
mv ~/Downloads/ManagementCA.pem ~

Enroll for Certificate Using EST Client Mode

  1. Edit the EST CLIENT mode configuration file

CODE
vim est-client-csr.conf

  1. Add the following to the file:

NONE
[ req ]
default_bits = 2048
distinguished_name = req_distinguished_name
req_extensions = req_ext
prompt = no

[ req_distinguished_name ]
countryName = US
organizationName = Primekey Solutions AB
commonName = est-client.primekey.training


[ req_ext ]
subjectAltName = @alt_names

[alt_names]
DNS.1 = est-client.primekey.training

  1. Save and close the file using :wq!

  2. Create the CSR to enroll with the EST

    NONE
    openssl req -new -config est-client-csr.conf -newkey rsa:2048 -nodes -keyout est-client-csr.key -outform DER -out est-client.csr

  3. Convert the CSR to base64

    NONE
    openssl base64 -in est-client.csr -out est-client.csr.b64 -e

  4. Enroll for a certificate using the EST Client mode alias

NONE
curl -v --cacert ManagementCA.pem --user est-client.primekey.training:foo123  --data @est-client.csr.b64 -o est-client-p7.b64 -H "Content-Type: application/pkcs10" -H "Content-Transfer-Encoding: base64" https://ca.keyfactor.training/.well-known/est/client/simpleenroll

  1. The following results should be displayed:

CODE
You should have something like the following returned, after running the above command.

* Connected to ca.keyfactor.training (172.31.41.201) port 443 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* successfully set certificate verify locations:
*  CAfile: managementca.crt
*  CApath: none
* TLSv1.2 (OUT), TLS header, Certificate Status (22):
} [5 bytes data]
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
.
.
.
.
100  2492  100  1600  100   892  20110  11211 --:--:-- --:--:-- --:--:-- 31544

* Connection #0 to host ca.keyfactor.training left intact

  1. Decode the response and review the certificate. Note: these are 3 separate commands each starts with openssl.

NONE
openssl base64 -in est-client-p7.b64 -out est-client-p7.der -d
openssl pkcs7 -inform DER -in est-client-p7.der -print_certs -out est-client-cert.pem
openssl x509 -in est-client-cert.pem -text -noout

  1. The following results should be displayed:

NONE
You should have something like the following returned after running the last command.
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            41:5c:79:87:76:d7:97:36:67:4a:23:c2:09:49:cd:83:cf:73:c7:91
    Signature Algorithm: sha256WithRSAEncryption
        Issuer: C=SE, O=PrimeKey Solutions AB, CN=Sub CA
        Validity
            Not Before: Sep 28 20:46:15 2023 GMT
            Not After : Sep 27 20:46:14 2025 GMT
        Subject: C=SE, O=PrimeKey Solutions AB, CN=est-client.primekey.training
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:a6:ba:2e:79:01:bb:25:96:86:a9:b3:18:a5:4d:
                    f5:00:a4:9f:87:73:30:1d:d6:f8:a3:f4:82:fd:6b:
                    bd:99:74:25:37:02:18:9f:30:72:5d:8f:a2:8f:d0:
                    c4:69:8f:5c:6b:b9:52:be:f2:38:e6:53:dc:15:fe:
                    34:b5:35:0a:ee:2f:cf:44:d4:4d:b8:59:39:6b:0d:
                    51:9f:56:d1:6f:80:68:bc:33:86:95:69:df:3b:62:
                    fe:57:09:62:8d:6c:9e:06:93:6d:4c:6f:c6:64:0f:
                    9e:54:c5:6d:9f:db:22:5e:7b:62:30:9d:c7:9d:5a:
                    12:1a:51:c5:33:62:b4:c9:57:7c:69:e2:ed:02:d3:
                    82:47:c2:81:a9:bc:1d:76:ba:a2:02:61:ff:87:09:
                    a1:22:16:e5:6e:9a:54:de:76:bc:a4:95:f5:ed:78:
                    8b:ed:aa:f6:70:b7:bb:2f:37:f8:06:8c:90:ad:4d:
                    94:a4:37:ec:90:37:c1:da:02:05:3e:45:a2:dd:68:
                    1f:bf:d0:b5:35:de:28:39:c7:17:66:a5:f1:f8:76:
                    f9:51:b4:6e:b6:d3:f4:12:56:8f:c4:70:e9:c0:bc:
                    15:a8:35:a2:d3:bd:5b:3c:39:79:34:16:d7:15:f0:
                    5c:36:a2:2a:3f:ba:11:31:32:0b:07:29:de:31:f3:
                    4f:3b
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Basic Constraints: critical
                CA:FALSE
            X509v3 Authority Key Identifier:
                keyid:EF:EF:3C:4B:D1:0E:C4:F7:94:D8:01:A2:51:19:D6:79:F0:6E:0A:AB

            X509v3 Extended Key Usage:
                TLS Web Client Authentication
            X509v3 Subject Key Identifier:
                4E:EC:38:45:E2:5E:EE:53:59:9C:9B:67:E5:F2:E2:B8:6F:12:DC:12
            X509v3 Key Usage: critical
                Digital Signature, Key Encipherment
    Signature Algorithm: sha256WithRSAEncryption
         bc:02:23:26:04:21:7a:a1:50:c4:ef:b1:c0:47:6b:8a:bb:85:
         77:37:5f:9f:96:03:84:31:37:a9:28:c4:d8:23:f0:2d:10:ef:
         8f:95:ef:79:7a:f3:c7:b9:c4:6d:40:7f:09:f5:ba:44:9f:55:
         de:19:1a:96:0c:4e:3a:73:48:29:41:9d:44:9c:1c:0d:d8:ba:
         38:cf:29:2b:4d:73:1a:17:27:fd:4a:c1:96:47:29:51:f3:fb:
         dc:ec:fd:7f:7d:50:12:15:8b:d5:5d:3c:09:8e:d8:2d:c6:6a:
         5f:8f:cf:cb:bc:16:a8:1f:74:de:88:97:7b:8a:65:63:47:fc:
         91:8f:b0:05:71:eb:18:a0:3e:67:75:3a:99:f8:d8:69:9f:94:
         15:b3:28:1b:02:0f:06:8c:95:a3:fc:38:99:8b:61:ae:ee:f9:
         71:5e:bc:ed:2f:8d:10:3a:bb:06:47:a4:3d:15:e5:63:c9:a8:
         f1:6d:ba:16:db:f9:58:50:bd:6b:d0:2e:67:15:36:bb:72:7e:
         05:6a:f0:d8:0d:ae:3b:1d:3c:cd:9d:f7:de:a2:a8:75:b2:e4:
         e8:91:ed:6c:b5:66:42:9e:5d:bd:d6:6d:e8:ef:e4:d5:2d:a8:
         7b:d5:6f:60:59:52:5b:bd:f2:2d:d1:17:f6:14:9f:e5:2f:ac:
         86:be:ee:63:b7:a2:f8:98:99:00:21:70:a3:6d:08:26:a6:92:
         65:17:09:84:a7:ea:4c:6e:cd:f9:4e:fd:5a:cb:e9:31:1d:63:
         ae:14:48:da:b8:e3:e9:ee:c0:6e:86:dd:11:1b:71:11:ca:69:
         2e:6d:c8:1f:c0:9b:63:14:3e:33:bd:2e:eb:dd:d7:a5:82:34:
         02:27:35:d4:7a:47:df:7d:18:a8:75:a8:e9:6e:96:49:e3:35:
         52:4c:39:59:db:72:f8:66:81:38:41:a3:d8:f5:75:37:12:e9:
         23:1b:77:0b:d1:38:52:3a:b7:05:f1:05:03:6f:a2:c1:be:63:
         6f:1b:dc:3a:98:31:06:d0:36:87:02:34:a9:67:27:7a:8b:3f:
         cd:76:c9:a8:87:bc:0c:03:80:39:ad:f3:cc:9e:e4:b4:38:52:
         18:0d:55:e7:0d:f3:82:10:02:36:3f:85:7a:d3:5c:83:52:9e:
         4a:c0:7a:7d:e9:4d:0c:ee:73:8e:e4:41:49:da:3d:b6:8f:22:
         38:67:9d:e6:7c:55:91:94:58:d3:f3:88:70:28:26:84:cd:21:
         79:c3:36:61:7d:ea:f3:e6:ff:17:b7:86:da:e8:c2:dd:de:66:
         4a:ae:47:f3:7d:25:bb:ef:9d:6e:f5:03:57:62:31:ab:33:9b:
         61:2d:01:f2:c8:f6:26:f9

Enroll for a Certificate using EST RA Mode

  1. Edit the EST RA mode configuration file

CODE
vim est-ra-csr.conf

  1. Add the following to the file:

NONE
[ req ]
default_bits = 2048
distinguished_name = req_distinguished_name
req_extensions = req_ext
prompt = no

[ req_distinguished_name ]
C = SE
O = PrimeKey Solutions AB
CN = est-ra.primekey.training

[ req_ext ]
subjectAltName = @alt_names

[alt_names]
DNS.1 = est-ra.primekey.training

  1. Save and close the file using :wq!

  2. Create the CSR to enroll with the EST RA alias

    NONE
    openssl req -new -config est-ra-csr.conf -newkey rsa:2048 -nodes -keyout est-ra-csr.key -outform DER -out est-ra.csr

  3. Convert the CSR to base64

    NONE
    openssl base64 -in est-ra.csr -out est-ra.csr.b64 -e

  1. Obtain the CA certificate for the EST RA mode alias

NONE
curl -v https://ca.keyfactor.training/.well-known/est/estra/cacerts -o cacerts.p7 --cacert ManagementCA.pem

  1. The following results are displayed:

CODE
You should see similar results:

{ [5 bytes data]
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Date: Wed, 16 Mar 2022 19:16:09 GMT
< Server: Apache
< Strict-Transport-Security: max-age=31536000; includeSubDomains
< Content-Transfer-Encoding: base64
< Content-Type: application/pkcs7-mime
< Content-Length: 3871
< Content-Security-Policy: default-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval'; style-src 'self' 'unsafe-inline'; frame-ancestors 'self'
<
{ [3871 bytes data]
100  3871  100  3871    0     0   304k      0 --:--:-- --:--:-- --:--:--  315k

* Connection #0 to host ca.keyfactor.training left intact

  1. Enroll for a certificate using the EST RA mode alias

NONE
curl -v --cacert ManagementCA.pem --user ejbca:foo123  --data @est-ra.csr.b64 -o est-ra-p7.b64 -H "Content-Type: application/pkcs10" -H "Content-Transfer-Encoding: base64" https://ca.keyfactor.training/.well-known/est/estra/simpleenroll

CODE
You should see similar results:

* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Date: Wed, 16 Mar 2022 19:18:39 GMT
< Server: Apache
< Strict-Transport-Security: max-age=31536000; includeSubDomains
< Content-Transfer-Encoding: base64
< Content-Type: application/pkcs7-mime; smime-type=certs-only
< Content-Length: 1657
< Content-Security-Policy: default-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval'; style-src 'self' 'unsafe-inline'; frame-ancestors 'self'
<
{ [1657 bytes data]
100  2545  100  1657  100   888  21445  11492 --:--:-- --:--:-- --:--:-- 33051

* Connection #0 to host ca.keyfactor.training left intact

  1. Decode the response and review the certificate

    NONE
    openssl base64 -in est-ra-p7.b64 -out est-ra-p7.der -d
openssl pkcs7 -inform DER -in est-ra-p7.der -print_certs -out est-ra-cert.pem
openssl x509 -in est-ra-cert.pem -text -noout

  2. The following results should be displayed:

    NONE
    Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            13:6a:2c:89:c0:8c:1a:4f:78:0c:91:b0:5f:54:33:5d:fa:81:ac:93
    Signature Algorithm: sha256WithRSAEncryption
        Issuer: C=SE, O=PrimeKey Solutions AB, CN=Sub CA
        Validity
            Not Before: Sep 28 20:59:27 2023 GMT
            Not After : Sep 27 20:59:26 2025 GMT
        Subject: C=SE, O=PrimeKey Solutions AB, CN=est-ra.primekey.training
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:c8:ae:9c:73:61:a4:28:57:75:21:e2:56:6a:8b:
                    9b:63:56:dd:ae:20:6b:cc:0d:e6:a8:c2:8d:c7:07:
                    4b:4c:4e:77:b7:30:d3:ee:15:12:4a:e8:72:84:af:
                    3c:e9:22:79:bf:4d:9e:8f:64:69:18:64:34:db:91:
                    f4:51:e5:bc:bd:37:04:a4:3e:3f:58:da:10:b7:ef:
                    44:58:22:1e:ab:34:a6:2e:72:44:4b:f6:ef:61:1d:
                    73:69:c2:fc:aa:e7:e3:69:20:93:f2:96:96:77:fc:
                    7b:44:09:f4:cf:5c:a5:03:27:41:27:0f:04:2a:ac:
                    e3:81:88:47:39:1c:d4:21:ae:dd:c8:2d:cb:12:e2:
                    84:b3:b0:9f:45:19:d8:b4:d6:82:b2:fc:c8:62:bd:
                    dc:fd:b7:bf:35:79:18:54:19:95:ea:f3:16:0b:3e:
                    2a:39:7a:72:d5:55:4a:6e:10:0a:ba:bf:1b:a7:1d:
                    da:bb:a0:5b:2b:b6:a0:c0:02:0d:2e:98:94:c5:29:
                    ad:03:bf:41:fc:f0:d1:29:46:6e:b1:1a:6a:ea:76:
                    38:82:55:c8:03:72:ce:b5:eb:48:30:20:29:52:ff:
                    f5:9d:5f:04:ff:8e:49:c6:d0:32:c7:be:3a:58:79:
                    4c:b7:d2:81:f9:cf:13:9f:24:82:2f:01:b2:d4:63:
                    01:a5
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Basic Constraints: critical
                CA:FALSE
            X509v3 Authority Key Identifier:
                keyid:EF:EF:3C:4B:D1:0E:C4:F7:94:D8:01:A2:51:19:D6:79:F0:6E:0A:AB

            X509v3 Subject Alternative Name:
                DNS:est-ra.primekey.training
            X509v3 Extended Key Usage:
                TLS Web Client Authentication
            X509v3 Subject Key Identifier:
                75:F8:2D:23:E3:E1:FB:DC:4F:66:AA:EA:B2:63:F2:ED:29:CF:08:78
            X509v3 Key Usage: critical
                Digital Signature, Key Encipherment
    Signature Algorithm: sha256WithRSAEncryption
         ba:d8:ac:37:f2:3d:33:3d:9b:a1:4c:4d:f4:dd:24:bc:19:2d:
         6b:fa:92:56:2b:f0:c8:8c:88:90:5c:4b:0f:4b:ad:1e:f5:1f:
         d8:5b:d2:65:31:6e:ab:53:51:fc:e2:e3:56:fe:29:98:9b:8b:
         87:70:b2:45:03:e7:0d:b0:c6:da:1d:a8:ba:87:65:58:5f:e2:
         14:1e:63:a5:08:8b:31:b0:41:a9:ef:21:23:38:4d:8f:ce:84:
         85:c9:e8:cf:37:1b:c6:54:06:e4:2a:6d:d9:57:fe:e7:cd:25:
         c3:44:d2:bc:08:03:b0:d3:09:2a:64:32:e6:9d:db:9a:f8:a8:
         bb:ac:50:36:2a:ca:ed:11:ba:7c:a2:7a:b5:ca:83:cd:a2:e3:
         9b:ed:6d:6f:82:9a:33:8f:9c:68:78:12:a7:4e:ba:9e:18:92:
         93:ad:1f:5a:70:fe:5d:ff:a0:2b:89:7b:4b:c7:5a:6b:86:af:
         ec:f0:a3:54:81:11:a3:fb:5b:59:a7:33:ce:82:35:df:5d:0a:
         6c:5c:69:f5:cf:78:a1:9f:ac:67:7e:20:9a:2b:bc:b6:4b:af:
         12:44:c3:00:7e:d5:f5:b3:58:12:84:e3:e8:4c:e2:eb:62:20:
         2c:ba:aa:5e:8f:77:67:11:7d:38:86:3b:b6:c3:37:4d:b8:04:
         e3:4a:7c:25:44:de:8d:0f:66:4a:d0:81:3a:e8:8c:b0:b5:ef:
         a0:99:d8:30:d3:2e:0a:6b:bb:e3:e4:e4:3c:18:c3:69:29:fc:
         17:3e:24:a0:bc:61:e9:41:00:cc:ef:eb:7c:58:9e:da:88:b5:
         e0:bf:bb:31:fa:4a:b7:e7:f0:d4:e3:77:8d:2c:0c:4a:a3:4f:
         3b:ea:5f:90:b5:ce:ae:80:b1:12:6d:12:d6:36:21:0a:f0:b6:
         69:27:90:5a:35:d6:32:56:6b:9e:65:42:99:3e:c6:76:20:76:
         59:90:4c:97:49:c5:8f:fd:f3:c2:5e:9d:bd:d6:c8:8c:aa:d7:
         cc:18:10:4d:9c:4f:21:cd:6d:9f:31:82:6f:9b:60:3f:4a:47:
         35:dc:4e:2d:a6:ef:c2:7d:48:fb:83:4d:e5:de:c9:1e:0f:fd:
         05:21:1d:45:11:64:04:76:24:c8:32:01:d5:91:9f:c2:09:38:
         9b:a5:20:9d:a7:f4:70:6a:b9:2c:40:51:91:7f:fe:d5:96:81:
         fb:db:8c:cf:c0:7b:4f:08:36:95:7e:60:8a:84:79:6a:c0:48:
         2b:94:8f:fa:18:7a:d9:bc:fa:5a:73:62:e4:de:66:8c:bc:a9:
         51:25:f9:7f:a1:62:77:54:c3:6f:c9:db:ac:88:fb:dd:4d:6a:
         5f:5b:73:52:9f:27:57:0f

? Question and Answers ?

JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.

Contact Support Close
